Description:

The Xenarc 1569 series of 15.9" touchscreen displays is perhaps the most versatile and all-encompassing product in our line up of products. This 16:9 1000 NIT High Bright Touchscreen is IP67 and IK08 rated and includes an optically bonded capacitive touchscreen, making it ideal for any harsh industrial environment. The 15.6 inch touch panel is optically bonded to the LCD panel, eliminating the air gap between the two, increasing clarity, contrast, and durability. Further, because the 15.6" touchscreen display unit is water tight and air tight, ambient humidity will not affect the clarity or viewability because of the advanced optical bonding. The 1569GNH 15 inch touchscreen monitor outperforms all automotive grade panels with a wider operating temperature range of -30C ~ 85C (-22F ~ 185F) and uses an IPS panel (In-Plane-Switching), which provides a wider viewing angle, consistent and accurate colors from all viewing angles, clearer images, and stable response times. A high contrast ratio of 800:1 provides crisper images and vivid colors, even in direct sunlight.

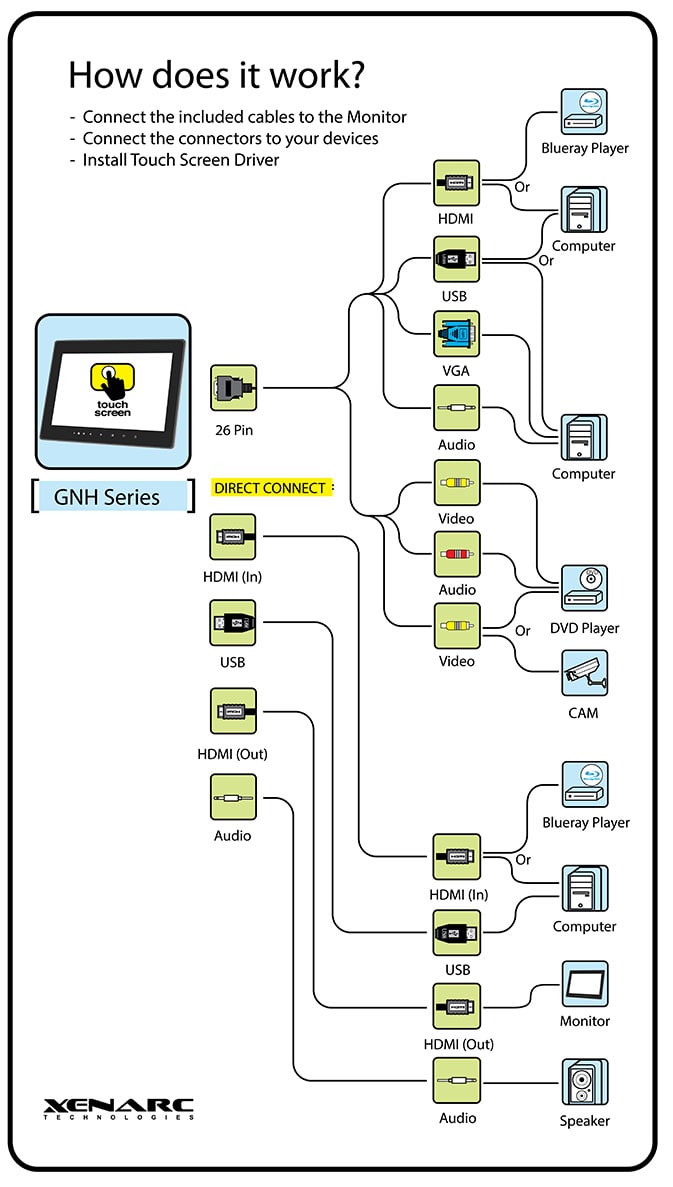

The versatility of the 1569 series extends beyond its usability in many different environments. The 1569GNH can video interface through our proprietary 26 pin cable (HDMI, VGA, AV Inputs) as well as HDMI direct into the monitor. The 15.16 touchscreen display monitor comes with an HDMI output that allows you to chain up a few 1569 series 15.6" touchscreen monitors or output to other HDMI monitors. With the included waterproof cables, the 1569GNH is IP67 on all sides and angles. The casing of the 1569GNH is designed to be used as a stand-alone monitor as well as a panel mount monitor (with optional panel mount bracket PMB-1219). 75mm x 75mm VESA standard mounting holes on the back further provide users with numerous mounting options.

The 1569GNH was designed for those looking for a true rugged, bright, compact display, usable in just about any environment or application.

Why do our 15.6" Touchscreen Display products outlast others in extreme conditions? Why do our products have a wider temperature range and a wider voltage input range? It is because our mission is to offer engineers, automators and system integrators the best products for any situation. By utilizing high grade components, this display is perfect for industrial, in-car computing applications or any other applications where a small, durable, environmentally rugged display is required, including but not limited to:

Features:

Specification
