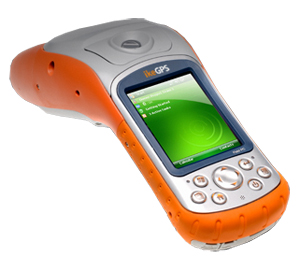

Juniper Archer
Ultra Rugged PDA with ikeGPS
The ikeGPS combines an Archer Field PC®, GPS receiver, 3D compass, digital camera and laser rangefinder resulting in a rugged all-in-one GIS field tool.
Archer Rugged PDA detail information |
|
|
ikeGPS Rugged Handheld |
Use the ikeGPS when rapid, safe capture of geospatial information is required. Simply aim, shoot, and record a target's position and distance along with a verifiable digital image.
Applications
Abound
Applications abound in situations where targets are difficult to reach or safety is a concern, including: asset management, research, insurance assessment, environmental work, disaster relief, and military engineering. Use the ikeGPS in your agency or industry to improve your mobile GIS productivity.
The ikeGPS is available in three models to fit your image resolution and long-distance targeting needs. The laser rangefinder is available in 100 meter, 300 meter, and 1,000 meter versions.
Depend on the ikeGPS to:
- Capture accurate differential GPS positions
- Record multiple laser offset 3D GPS positions up to 1000 meters
- Embed position information with digital image
- Rely on robust rugged all-in-one design
- Integrate with mobile GIS software and applications
|
|
Specification |
|
AR-LB100 |
AR-LB300 |
AR-LB1000 |
GPS* |
|
|
|
GPS (S/A off) |
2-5 Meters |
2-5 Meters |
2-5 Meters |
WAAS |
2 Meters |
2 Meters |
2 Meters |
Laser Rangefinder |
|
|
|
Range |
100 Meters |
300 Meters |
1000 Meters |
Accuracy |
+/- 0.3m |
+/- 0.3m |
+/- 0.3m (0-300m); +/- 1m (>300m) |
Eye Safety |
Class 1 |
Class 1 |
Class 1 |
Compass |
|
|
|
Heading Accuracy |
2 degrees |
2 degrees |
2 degrees |
Tilt |
0 - 90 degrees |
0 - 90 degrees |
0 - 90 degrees |
Camera |
|
|
|
Resolution |
3.2MP |
5MP |
5MP |
Zoom |
Digital, 30x, zoomed image saved |
Digital, 30x, zoomed image saved |
Digital, 30x, zoomed image saved |
File Format |
jpeg |
jpeg |
jpeg |
Computer |
|
|
|
Archer Field PC |
Full Archer Specifications |
Battery |
3900mAh Sealed Lithium-Ion 6-8 hours typical use |
Environmental |
|
|
|
Water and Dust |
IP67 MIL-STD 810F submerged for 30 minutes at 0.5 meters |
Drop |
1 meter to concrete |
Weight |
<2 lbs/1kg |
Construction |
Metal alloy and plastic housing with elastomer protective surface |
*Depends on multipath environment, number of satellites in view, satellite geometry, and ionospheric activity. |
|
|
|
|
|
|
