Cloud-Managed Networking for Vehicles

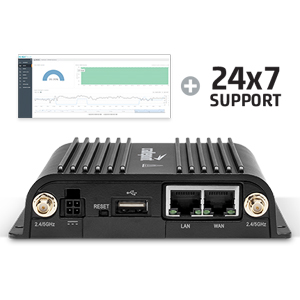

NetCloud Solution Packages with the ruggedized IBR1900 LTE router are designed to extend the value of SD-WAN to mobile networks in vehicles, mobile command centers, or anywhere robust networking with wireless WAN connectivity is required. It offers five Gigabit Ethernet ports and three-radio Gigabit Wave 2 ac WiFi. NetCloud Solution Packages include NetCloud software, a router, and 24x7 support with Limited Lifetime Warranty on hardware. Upgrade to NetCloud Advanced for additional features such as application traffic analytics, application-aware firewall, and URL content filtering.


IBR1900 IBR1900 IBR1900 IBR1900 IBR1900

Product Brochure

Key Benefits

  • LTE Advanced with SIM-based auto-carrier selection (LP6 versions)
  • Ruggedized for vehicles in challenging environments
  • Best WiFi (first LTE router with "Wave 2" Gigabit WiFi)
  • Gigabit Ethernet ports & active GPS
  • Cradlepoint Extensibility Platform
  • FIPS 140-2 Inside versions available

General Information

  • Model: IBR1900
  • Cloud Managed: Yes, with NetCloud Manager
  • LTE: Embedded LTE-Advanced 600 Mbps Modem & DC-HSPA+ Fallback
  • WiFi: Dual-band, dual-concurrent WiFi; 802.11 a/b/g/n/ac wave 2 (IBR900 only)
  • Carriers / Operators: All North American carriers, European & Asia Pacific operators, Saudi Arabia
  • Ethernet Ports: 2 LAN/WAN switchable 10/100/1000
  • Material: Metal
  • Ruggedized: Yes, IP54, Shock/Vib/Humidity MIL STD 810G & SAEJ1455
  • Ignition Sensing: Automatic ON & time-delay OFF
  • GPS/GNSS: Yes, with TAIP & NMEA 0183 V3.0
  • OBDII Support: No
  • Operating Temperature: -30 °C to 70 °C (-22 °F to 158 °F)
  • Input Range: 9-33 VDC (and low voltage shutoff)
  • Size: 4.6 × 4.5 × 1.2 in (118 × 113.5 × 29.3 mm)
  • Weight: 14 oz (400 g)
  • Failover: Yes

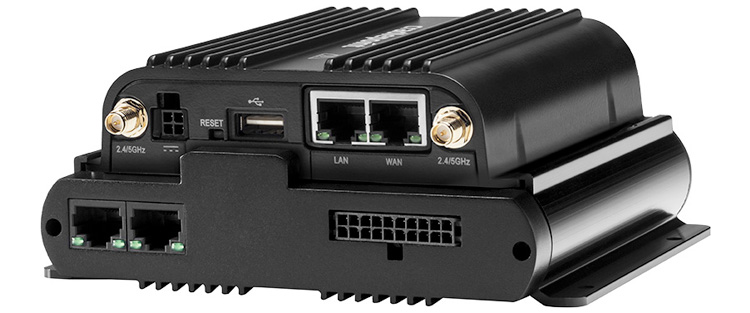

  • Dual Modem Capable: Yes, with COR Extensibility Dock
  • Support: Free 24x7

Solution Briefs

Cloud-Managed, LTE-Enabled Solutions Protect Uptime & Critical Voter Information
Government agency leaders and IT departments have many network-related challenges to consider when connecting and securing voter kiosks on election day. With temporary polling places at locations ranging from rural towns to big cities, agencies need flexible, easy-to-deploy Internet access; assurance that voter data is completely protected; and the ability to troubleshoot connectivity and security remotely. Agencies leverage Cradlepoint's all-in-one branch solutions for pop-up connectivity, cloud management, and software-defined security at polling locations anywhere.
