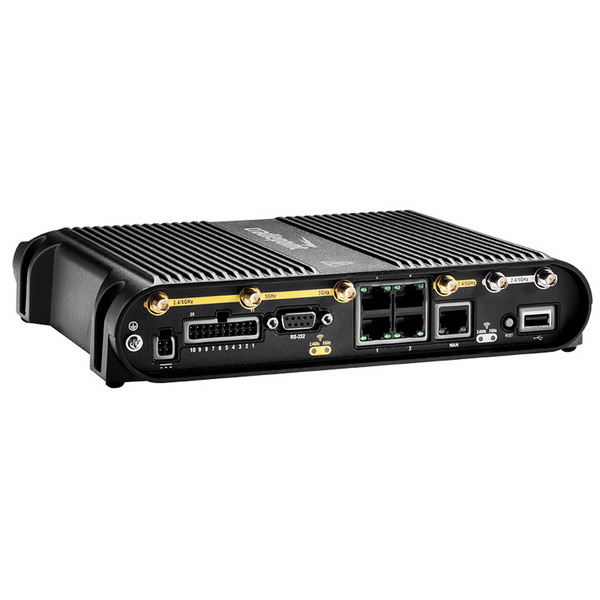

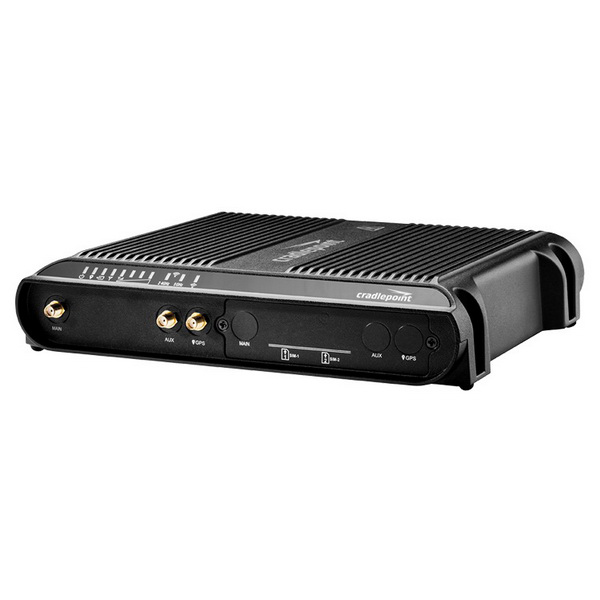

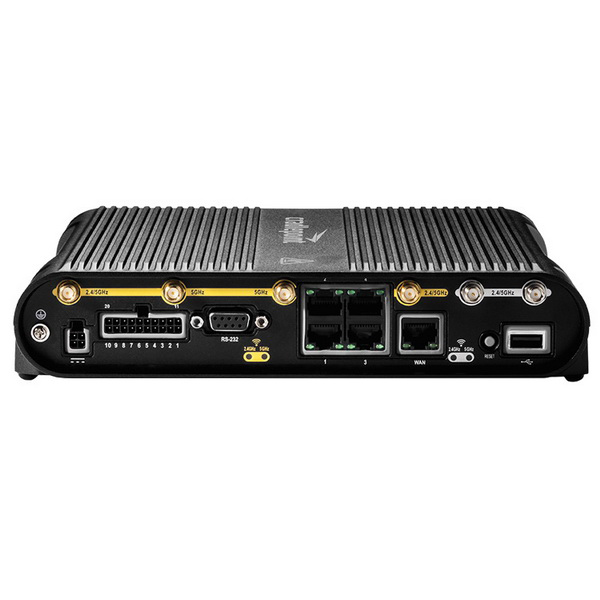

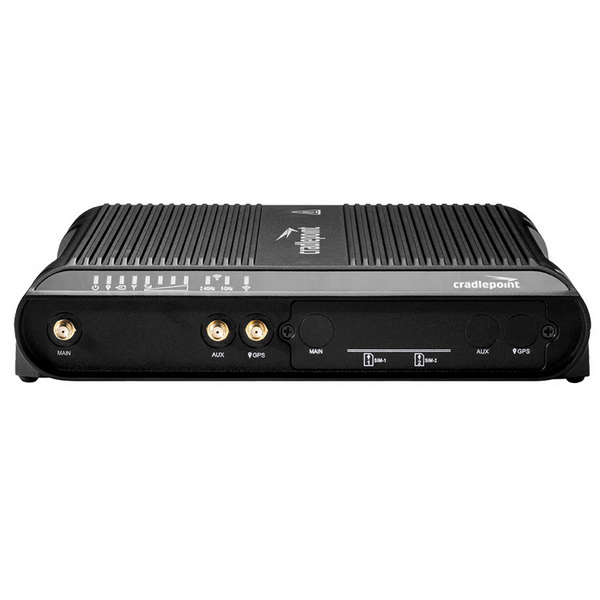

Cradlepoint COR IBR1700

Panasonic Grants Support Program

Cloud-Managed Networking for Police Vehicles, Ambulances, Fleets & More

NetCloud Solution Packages with the ruggedized IBR1700 LTE router are designed to extend the value of SD-WAN to mobile networks in vehicles, mobile command centers, or anywhere robust networking with wireless WAN connectivity is required. It offers five Gigabit Ethernet ports and three-radio Gigabit Wave 2 ac WiFi. NetCloud Solution Packages include NetCloud software, a router, and 24x7 support with Limited Lifetime Warranty on hardware.


IBR1700 IBR1700 IBR1700

Product Brochure

Key Benefits

  • World's first LTE mobile router with three-carrier aggregation for best-in-class performance
    Embedded LTE Advanced 600 Mbps modem
  • Field-upgradable with 2nd modem (second wireless carrier) for continuous connectivity
  • Precision GPS with dead-reckoning enables location-based applications
  • OBD-II support with accessory cable for vehicle health and diagnostics reporting
  • Extensibility with GPIOs, Router SDK, NCM API for custom solutions and more!

General Information

  • Model: IBR1700
  • Cloud Managed: Yes, with NetCloud Manager
  • LTE: Embedded LTE-Advanced 600 Mbps Modem & DC-HSPA+ Fallback
  • WiFi: Gigabit WiFi 802.11 a/b/g/n/ac wave 2 MU-MIMO – 3 radios
  • Carriers / Operators: AT&T, Verizon, T-Mobile, Sprint, Canada (Bell, Rogers, TELUS), Europe, Australia/New Zealand
  • Ethernet Ports: 5 LAN/WAN switchable 10/100/1000
  • Material: Metal
  • Ruggedized: Yes, IP54, Shock/Vib/Humidity MIL Spec 810G & SAE J1455
  • Ignition Sensing: Automatic ON & time-delay OFF
  • GPS/GNSS: Yes, with active antenna and Dead Reckoning (GNSS/GPS + 3D Accel. + OBDII)
  • OBDII Support: Yes, with accessory cable
  • Operating Temperature: -30 °C to 70 °C (-22 °F to 158 °F)
  • Input Range: 9-33 VDC (and low voltage shutoff)
  • Size: 8.8 × 7.5 × 1.7 in (224.3 × 190 × 44 mm)
  • Weight: 3 lb 7 oz (1.7 kg)
  • Failover: Yes
  • Dual Modem Capable: Yes, field-upgradable MC400 modem slot
  • Support: Free 24x7

Solution Briefs

Cloud-Managed, LTE-Enabled Solutions Protect Uptime & Critical Voter Information
Government agency leaders and IT departments have many network-related challenges to consider when connecting and securing voter kiosks on election day. With temporary polling places at locations ranging from rural towns to big cities, agencies need flexible, easy-to-deploy Internet access; assurance that voter data is completely protected; and the ability to troubleshoot connectivity and security remotely. Agencies leverage Cradlepoint's all-in-one branch solutions for pop-up connectivity, cloud management, and software-defined security at polling locations anywhere.
